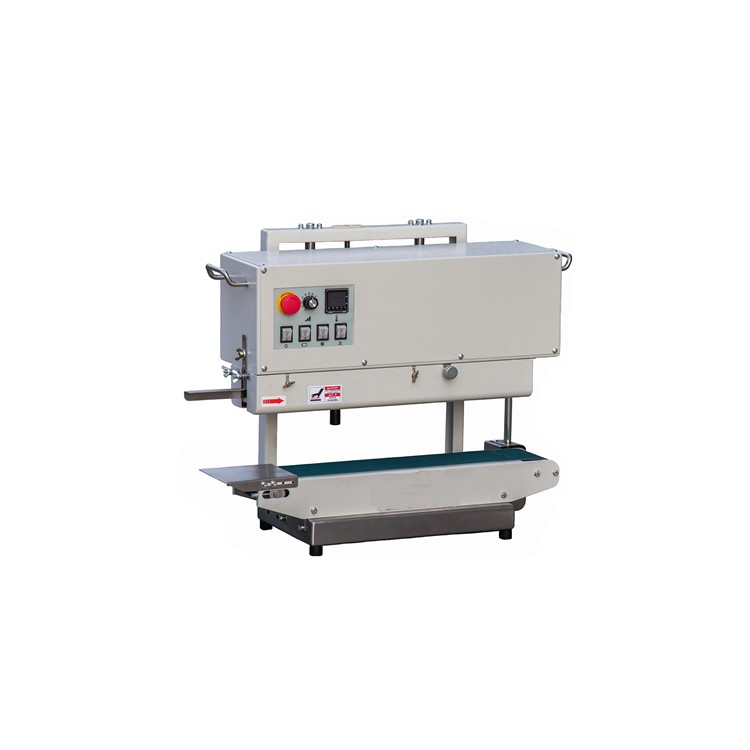

Vertical Tabletop Continuous Band Sealer

WD-533V is a compact tabletop vertical band sealer machine. It is convenient to use in any place for its small volume. It is perfect for small-pack liquids or coffee bags. It delivers high-quality bag sealing for low-production packaging operations. We adopt a Japanese OMRON electronic thermostat, 25W Taiwan motor, and Teflon belt (high quality imported from Japan). The guide stripe on the conveyor belt is designed to prevent the conveyor belt from deviating.

WD-533V Vertical Band Sealer YouTube Video

Electrical Specifications:

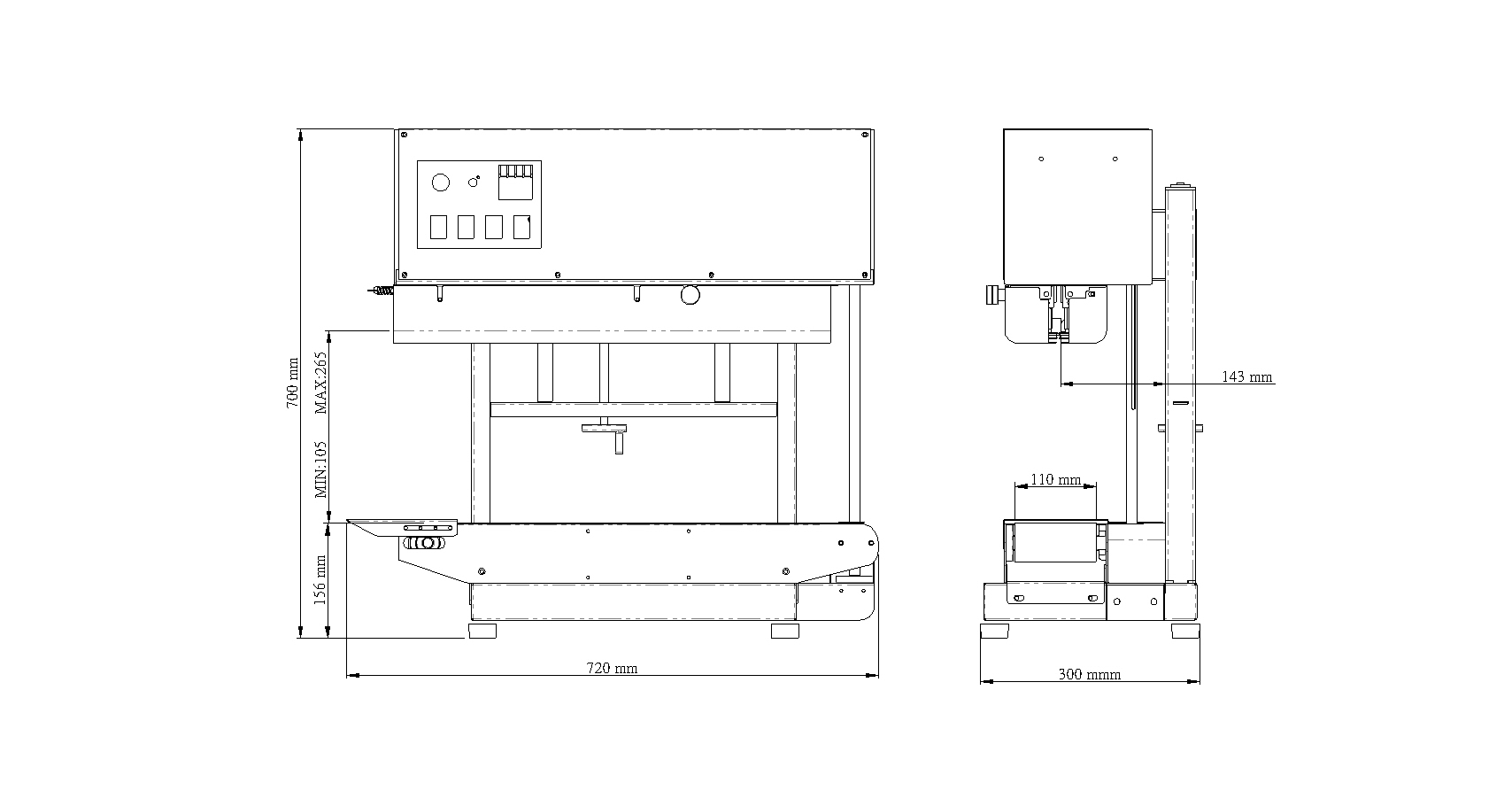

• Dimensions: 700 x 480 x 650 mm (Lx W x H)
• Conveyor belt size: 660 x 110 mm (L x W)
• Electrical: 110V/ 220 V /1 Ph / 50/60HZ
• Infeed direction: Left to right(standard)
• Teflon Conveyor width:110mm
• Conveyor loading weight:8kg
• Bag thickness: Up to 0.7mm
• Sealing speed : 0-12 m per min. (variable speed)
• Temperature range : 0-399 degrees Celsius
• Sealing width: Standard 10 mm (5 mm available)
• Bag length range: 50-270 mm

Bag material:

• PE, PP, Aluminum foil bag or heat sealable materials.

Options:

• Stainless steel body(S)
• Counter (C)
