Compact small chamber food vacuum sealing machine with advanced features
TC-520LR
Inquiry

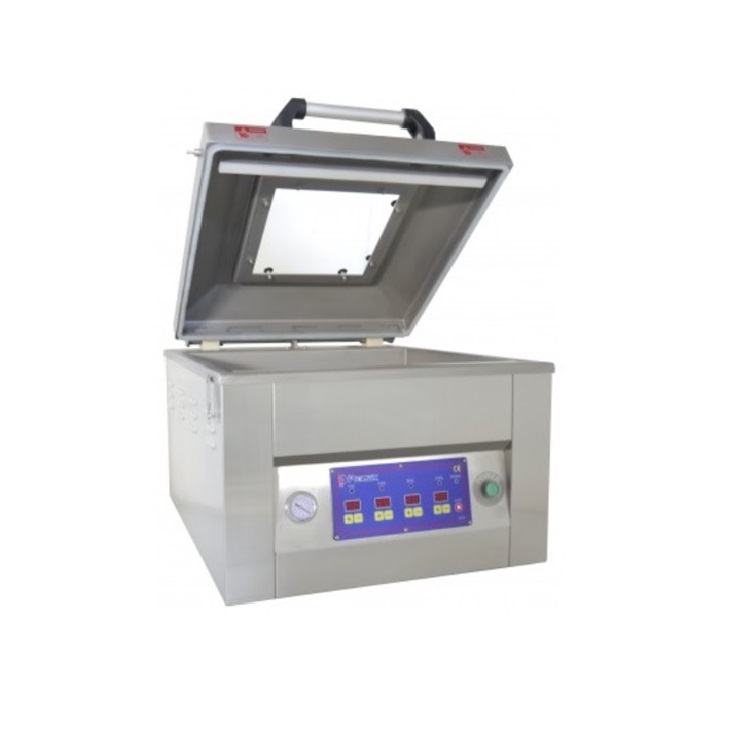

The model TC-520LR is one of our most popular table top vacuum chamber sealer models. The “LR” in the model number lets you know that this machine features a two 21” seal bars one on the left and one on the right of the vacuum cavity area. Like all UMPACKT chamber vacuum sealers this machine is ETL tested, certified and labeled as meeting UL and CSA safety standards for packaging equipment as well as NSF sanitary standards. This rugged functional machine utilizes an all # 304 stainless steel housing, lid, with a viewing port, and vacuum cavity. It features a Busch (model RB0021) vacuum pump for reliable and powerful vacuum performance.

Electric specifications:
  • Power Supply : 1PH 220V 60HZ 15AMP
  • Seal Bar Width: 6mm
  • Seal Bar Length 21.2”(540mm)
  • Distance Between Seal Bars 17.7”(450mm)
  • Vacuum Pump Capacity Busch 21M3/HR
  • Chamber Size 22”x22”(560x540mm)
  • Chamber Depth 7.8”(210mm)
  • Machine Weight lbs

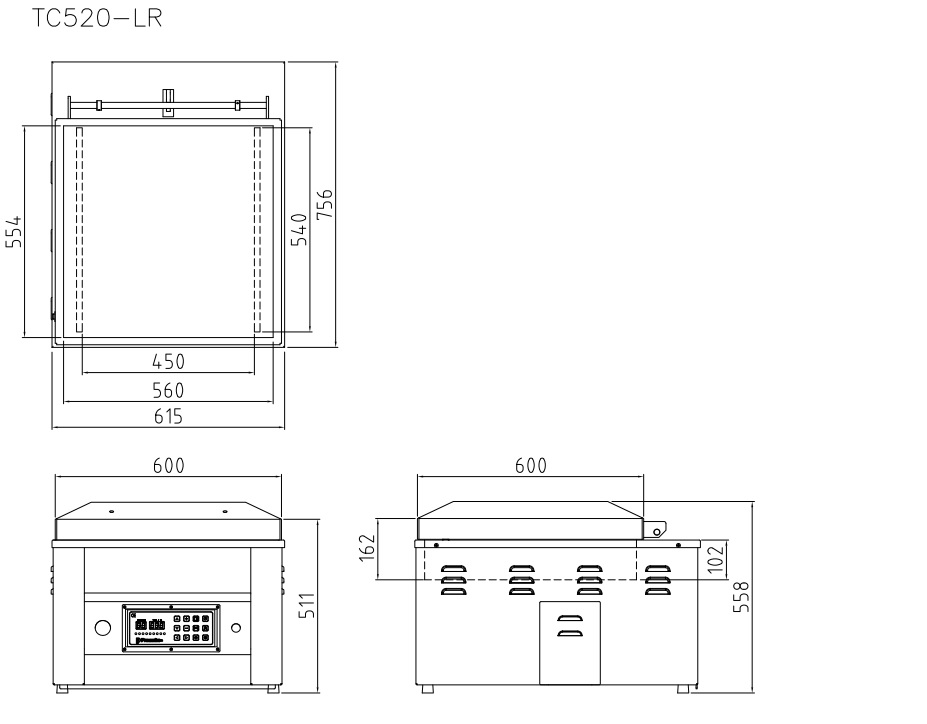

  • Machine Size 29”x24”x21” (756x615x558mm)
Standard Features:
  • Made in Taiwan
  • Electronic control board PD-01 Basic Digital Control Panel
  • Stainless Steel Construction
  • Stainless Steel Lid with view port
  • Bladder Activated Sealing
  • Busch Vacuum Pump
  • Vacuum stop key
  • PP plate for heigh adjustment
  • UL, CE Certified & Labeled

Options:
  • PNC-01 Microprocessor Control
  • Electric Cut-Off Seal Bar
  • Soft Air
  • Bi-Active Seal
  • Air Assist Sealing
  • Gas Flush System
  • Twin Beam Sealing
