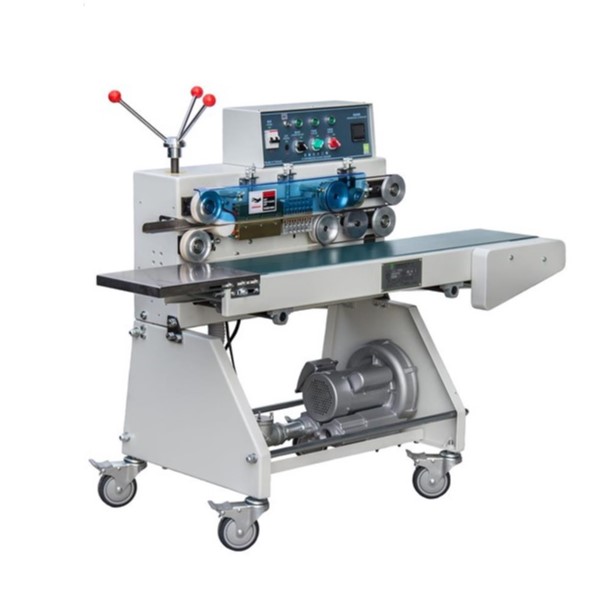

Horizontal Continuous Band Sealer with Air Sucking

Horizontal continuous air suction band sealer SA-20 is the most basic version of the sealers we offer. It is the best choice for those who only begin their sealing adventures or have relatively limited expectations of the machine's functions. It comes with an air-sucking function that allows to reduce air in the bag by up to 60-80%. It performs well for a wide range of products packaged in pre-made, open-mouth heat-sealable bags. We can customize the SA-20 to meet your specific application and performance requirements.

Electrical specification:

• Dimensions1440 x 600 x 1020 mm (Lx W x H)
• Conveyor belt size1140 x 200 mm (Lx W)
• Electrical100 to 230 VAC /1 Ph / 50/60HZ
• Infeed direction Left to Right (standard)
• Bag thickness Up to 0.7 mm
• Sealing height760 mm / 860 mm
• Sealing speed8 m per min (fixed speed)
• Temperature range0-399 degrees Celsius
• Sealing width: Standard 10 mm (5/15/20mm available)
• Conveyor width200 mm (can be customized)
• Conveyor loading weigth15 kg

Bag material:

• PE, PP, Aluminum foil bag or heat-sealable materials

Options:

• Variable Speed 0-12 m/min (H)
• Stainless steel body (S)
• Dry Ink Coder (I)
• Ribbon Coder (R)
• Counter (C)
• Gas Flush System (G)
• Conveyor width 300 mm or 400 mm (-30/40)
• Infeed direction: right to left
